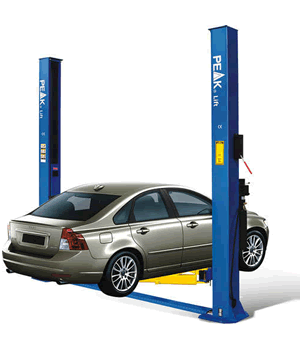

 Δ SE-350



FLOORPLATE CHAIN-DRIVE TWO-POST LIFT



8,000 Lb. Capacity
• Dual hydraulic cylinders, designed and made

on ANSI standard, high quality NOK seals.
• 5/16" aircraft quality cable is used for

synchronization
• Self-lubricating UHMW Polyethylene sliders and

bronze bush
Exclusive feature: single-point safety release

by handle
Supersymmetric arms design with

three-stages front arms and two-stages

rear arms.
• Stackable rubber pad with 1.5" and 2.5"

extension adaptors
• Automatic arms restraints
• Hydraulic power unit



SPECIFICATIONS

 Model SE-350  Floorplate Chain-drived
 Lifting Capacity  3.5T (8,000 lbs)
 Lifting Time  45 Seconds
 Lifting Height  1815-1917mm (71 1/2" - 75 1/2")
 Overall Height  2850mm (112 1/4")
 Overall Width  3390mm (133 1/2")
 Drive-Thru Clearance  2554mm (100 1/2")
 Width Between Columns  2780mm (109 1/2")
 Minimum Pad Height  90mm (3 1/2")
 Gross Weight  590Kg (1,300 lbs)
 Motor  2.0/3.0HP
 QTY of Container  25 Units/20'GP
 Packing Dimension  2900 X 450 X 750 mm
